Zkteco InBio160 PoE Bundle (New) Plus Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
Product Features of Zkteco InBio160 PoE Bundle (New) Plus Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
Buy Now
InBio160 carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio160 via RS-485 for fast and accurate matching with templates stored in a data-base.

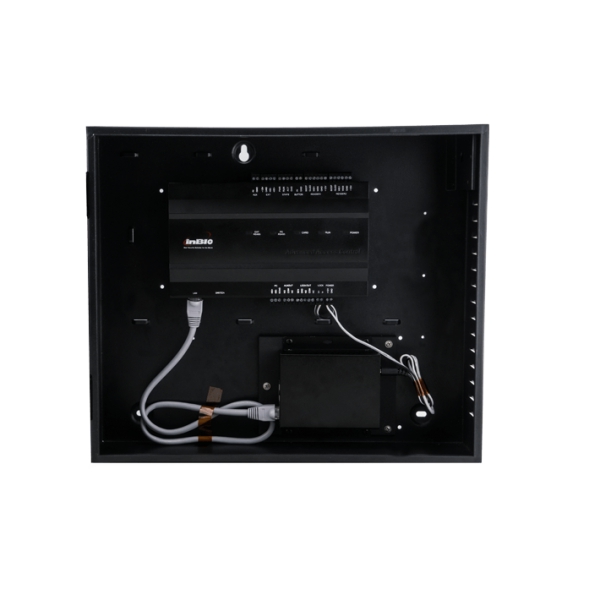

In this bundle, the PoE splitter can offer 12V 2A DC for both InBio160 and one 12V DC lock. On the input side, just need connect the splitter to a PoE switch.
Specification of InBio160 |
|
|
User Capacity |
30,000 |
| Fingerprint
|
3,000 |
|
Event Buffer |
100,000 transactions |
|
Communication |
RS485, Ethernet |
|
Nominal Voltage of InBio160 |
12v |
|
Standby Current of InBio160 |
50mA |
|
Operating Temp |
0°C~ 45 °C |
|
Operating Humidity |
20%~ 80% |
|
Number of doors controlled |
One door |
|
Number of readers Supported |
2 |
| Aux. Input
|
1 |
|
Aux. Output |
1 |
|
Types of readers supported |
26-bit Wiegand, others upon request |
|
Number of Inputs |
2 (Exit Device and Door Status) |
|
Number of Outputs |
2 (One Form C relay for lock and one Form C relay for Aux output) |
|
Weight |
3.35kg |
|
Dimensions (Bundle Only) |
305.2mm × 298.4mm × 89mm |
|
Dimensions ( Board Only) |
183mm × 106mm |
Specification of POE Splitter |
|
|
Maximum Power |
15.4W (IEEE 802.3af)ï¼›25.5W (IEEE 802.3at) |
|
Input voltage |
36-57V |
|
Output voltage: |
12V |
|
Network standards |
IEEE802.3i 10 BASE-T IEEE802.3i 100 BASE-TX IEEE802.3x flow control IEEE802.3af/ IEEE802.3at |
|
Working Temperature |
0°C ~ 45 °C |
|
Interface protection |
Meet the IEC61000-4-2 (ESD) ± 15KV (air), ± 8KV (contact) requires Able to withstand 8/20us 24A (12A) energy |
|
Input |
an input RJ45 interface |
|
Output |
an output RJ45 connector and a DC output interface |
|
Data transfer rate |
10/100/1000Mbps |
|
The maximum transmission distance |
100 meters |
These days many companies claim on their website that they are distributors of Zkteco InBio160 PoE Bundle (New) Plus Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal but about the distributor of Zkteco InBio160 PoE Bundle (New) Plus Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal Terminal in Lahore Karachi Islamabad Pakistan, Bilytica is authorized distributor of Time Attendance Machine Zkteco InBio160 PoE Bundle (New) Plus Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal. Zkteco InBio160 PoE Bundle (New) Plus Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal and this was updated on updated on 2024-04-26T15:24:05+00:00 . We provide best biometric machines for face recognition voice recognition voice biometric face biometric attendance systems and solutions Zkteco InBio160 PoE Bundle (New) Plus Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
