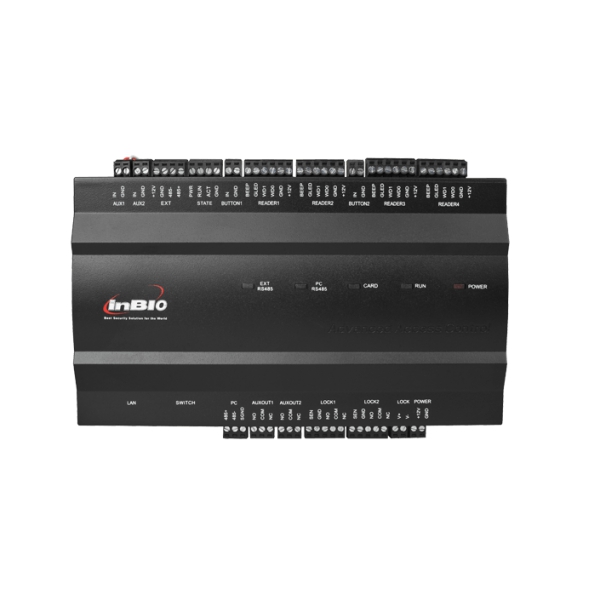

InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modication of network parameters directly and easily.
InBio controller firmware can be upgraded in the field. Stores up to 3,000 fingerprint templates, 30,000 card users, and up to 100,000 events and transactions. Controller is backed up in real-time in on-board SD card. Data is preserved if power is lost. InBio continues to opperate if network conection is interrupted. Along with relay contacts for controlling door locks, easily programmable auxilary relays can be used for additional control and interface to lights, alarms, annunciators, intrusion detection panels, or even extra locking devices or gate controllers.
InBio controllers come in three sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture. Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxilary Input/Output Linkages are built into controller firmware.
Free SDK is available for integrators and OEM’s to integrate the InBio controllers with their or existing security or personnel management applications. Upon request, ZK can also customize InBio firmware to meet any custom requirements.
Specification of InBio160 |
|
|
User Capacity |
30,000 |
| Fingerprint
|
3,000 |
|
Event Buffer |
100,000 transactions |
|
Communication |
RS485, Ethernet |
|
Nominal Voltage of InBio160 |
12v |
|
Standby Current of InBio160 |
50mA |
|
Operating Temp |
0°C~ 45 °C |
|
Operating Humidity |
20%~ 80% |
|
Number of doors controlled |
One door |
|
Number of readers Supported |
2 |
| Aux. Input
|
1 |
|
Aux. Output |
1 |
|
Types of readers supported |
26-bit Wiegand, others upon request |
|
Number of Inputs |
2 (Exit Device and Door Status) |
|
Number of Outputs |
2 (One Form C relay for lock and one Form C relay for Aux output) |
|
Weight |
3.35kg |
|
Dimensions (Bundle Only) |
305.2mm × 298.4mm × 89mm |
|
Dimensions ( Board Only) |
183mm × 106mm |
Specification of POE Splitter |
|
|
Maximum Power |
15.4W (IEEE 802.3af)ï¼›25.5W (IEEE 802.3at) |
|
Input voltage |
36-57V |
|
Output voltage: |
12V |
|
Network standards |
IEEE802.3i 10 BASE-T IEEE802.3i 100 BASE-TX IEEE802.3x flow control IEEE802.3af/ IEEE802.3at |
|
Working Temperature |
0°C ~ 45 °C |
|
Interface protection |
Meet the IEC61000-4-2 (ESD) ± 15KV (air), ± 8KV (contact) requires Able to withstand 8/20us 24A (12A) energy |
|
Input |
an input RJ45 interface |
|
Output |
an output RJ45 connector and a DC output interface |
|
Data transfer rate |
10/100/1000Mbps |
|
The maximum transmission distance |
100 meters |
