Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
Product Features of Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
Buy Now
C3-100 is one of the most rugged and reliable one door controller on the market, with a multitude of built-in features.

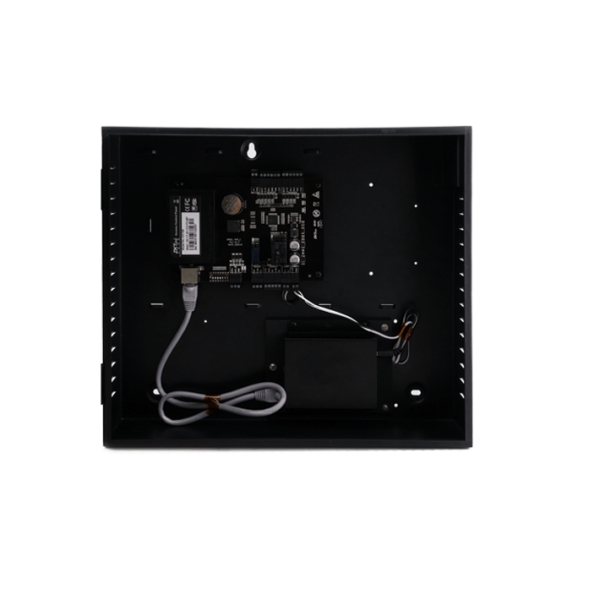

In this bundle, the PoE splitter can offer 12V 2A DC for both C3-100 and one 12V DC lock. On the input side, just need connect the splitter to a PoE switch.
Specification of C3-100 |
|
|
User Capacity |
30,000 |
|
Event Buffer |
100,000 transactions |
|
Communication |
RS485, Ethernet |
|
Nominal Voltage of C3-100 |
12v |
|
Standby Current of C3-100 |
40mA |
|
Operating Temp |
0°C~ 45 °C |
|
Operating Humidity |
20%~ 80% |
|
Number of doors controlled |
One door |
|
Number of readers Supported |
2 |
|
Aux. Output |
1 |
|
Types of readers supported |
26-bit Wiegand, others upon request |
|
Number of Inputs |
2 (Exit Device and Door Status) |
|
Number of Outputs |
2 (One Form C relay for lock and one Form C relay for Aux output) |
|
Weight |
3.35kg |
|
Dimensions (Bundle Only) |
305.2mm × 298.4mm × 89mm |
|
Dimensions ( Board Only) |
160mm × 106mm |
Specification of POE Splitter |
|
|
Maximum Power |
15.4W (IEEE 802.3af)ï¼›25.5W (IEEE 802.3at) |
|
Input voltage |
36-57V |
|
Output voltage: |
12V |
|
Network standards |
IEEE802.3i 10 BASE-T IEEE802.3i 100 BASE-TX IEEE802.3x flow control IEEE802.3af/ IEEE802.3at |
|
Working Temperature |
0°C ~ 45 °C |
|
Interface protection |
Meet the IEC61000-4-2 (ESD) ± 15KV (air), ± 8KV (contact) requires Able to withstand 8/20us 24A (12A) energy |
|
Input |
an input RJ45 interface |
|
Output |
an output RJ45 connector and a DC output interface |
|
Data transfer rate |
10/100/1000Mbps |
|
The maximum transmission distance |
100 meters |
These days many companies claim on their website that they are distributors of Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal but about the distributor of Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal Terminal in Lahore Karachi Islamabad Pakistan, Bilytica is authorized distributor of Time Attendance Machine Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal. Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal and this was updated on updated on 2024-04-26T16:20:01+00:00 . We provide best biometric machines for face recognition voice recognition voice biometric face biometric attendance systems and solutions Zkteco C3-100 PoE Bundle C3 Series Access Control Price Price in Lahore Karachi Islamabad Pakistan Time Attendance Biometric Machine Terminal
